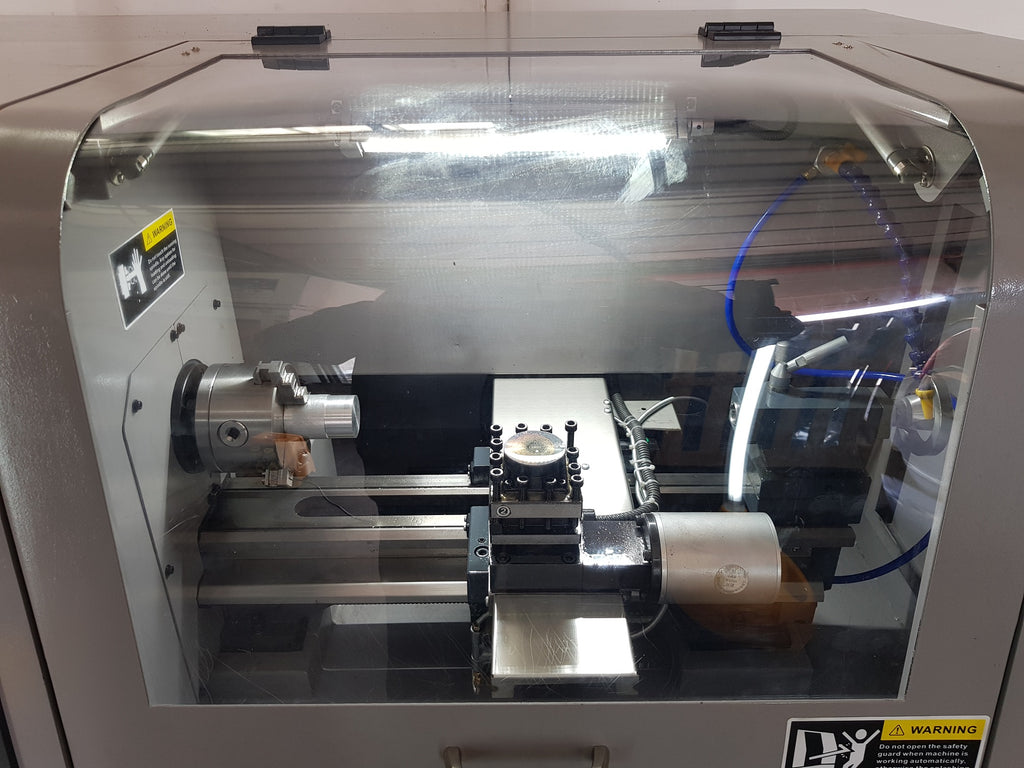

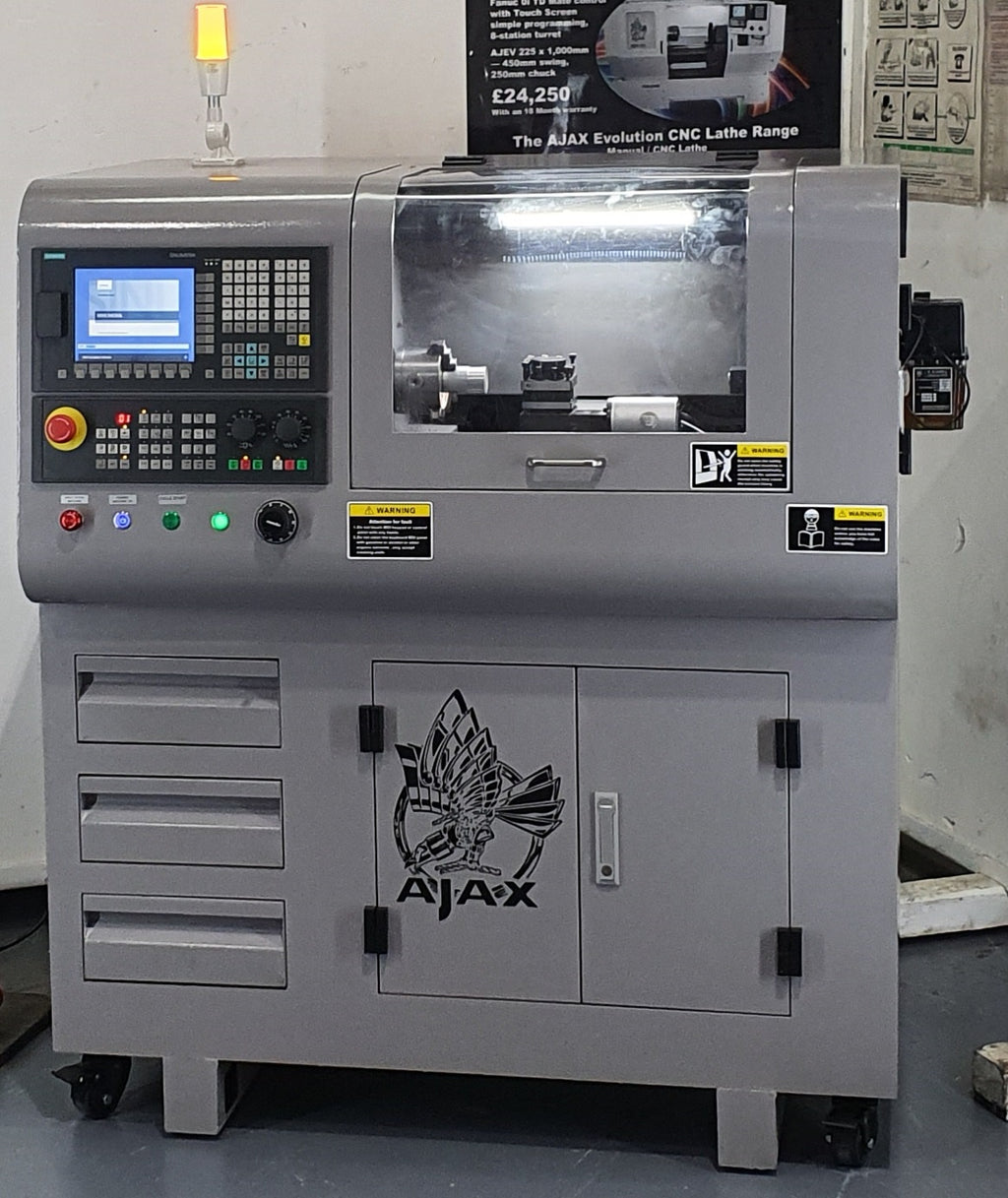

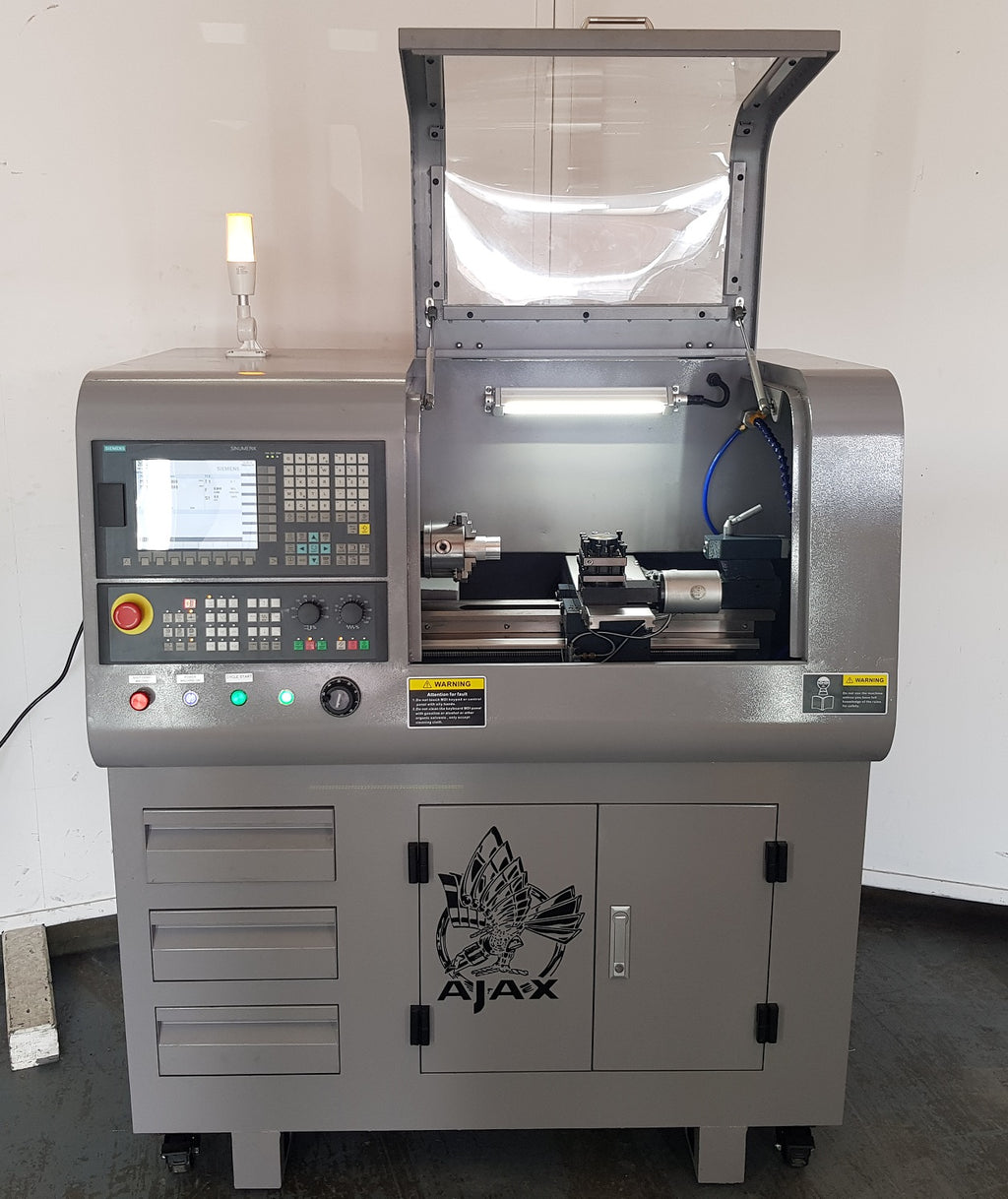

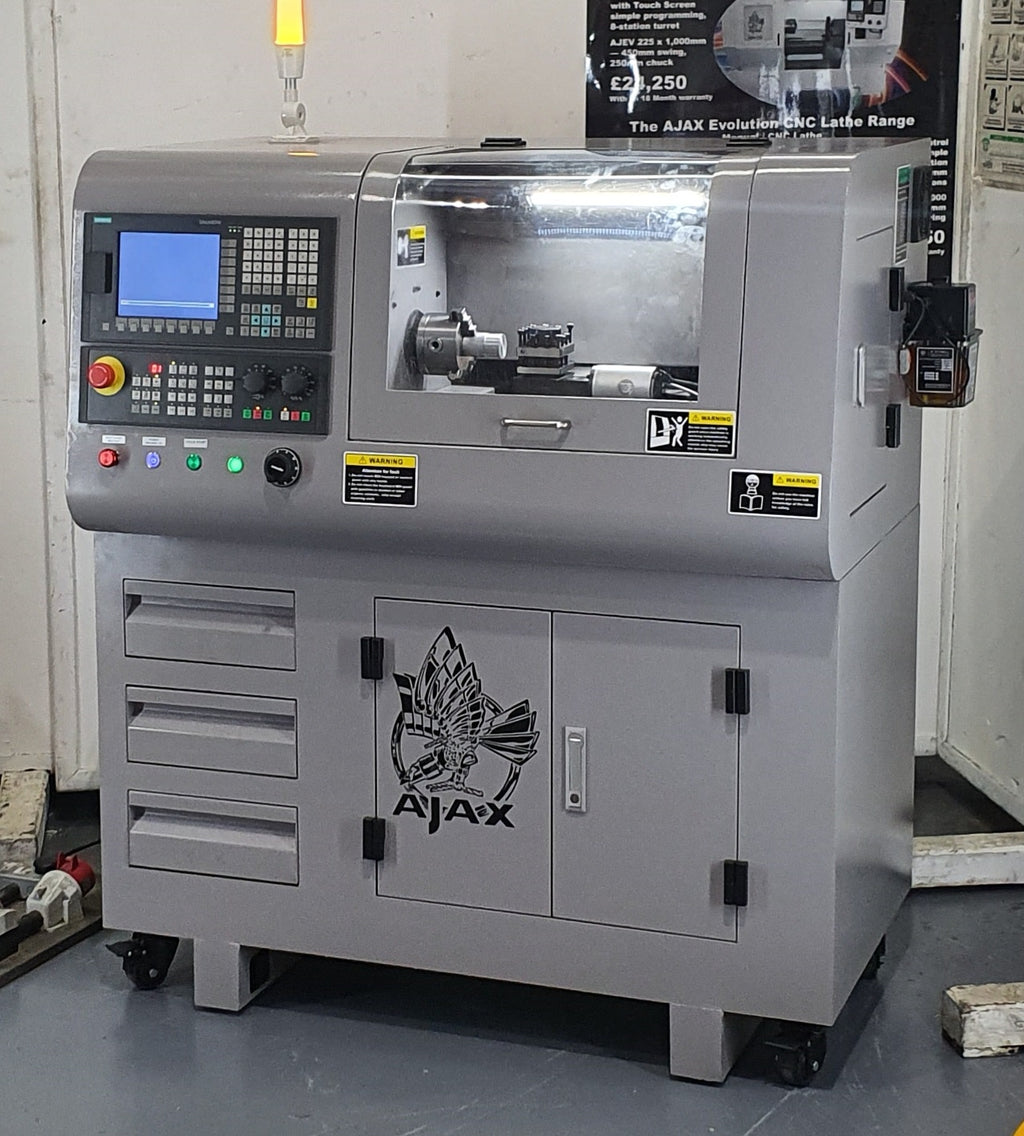

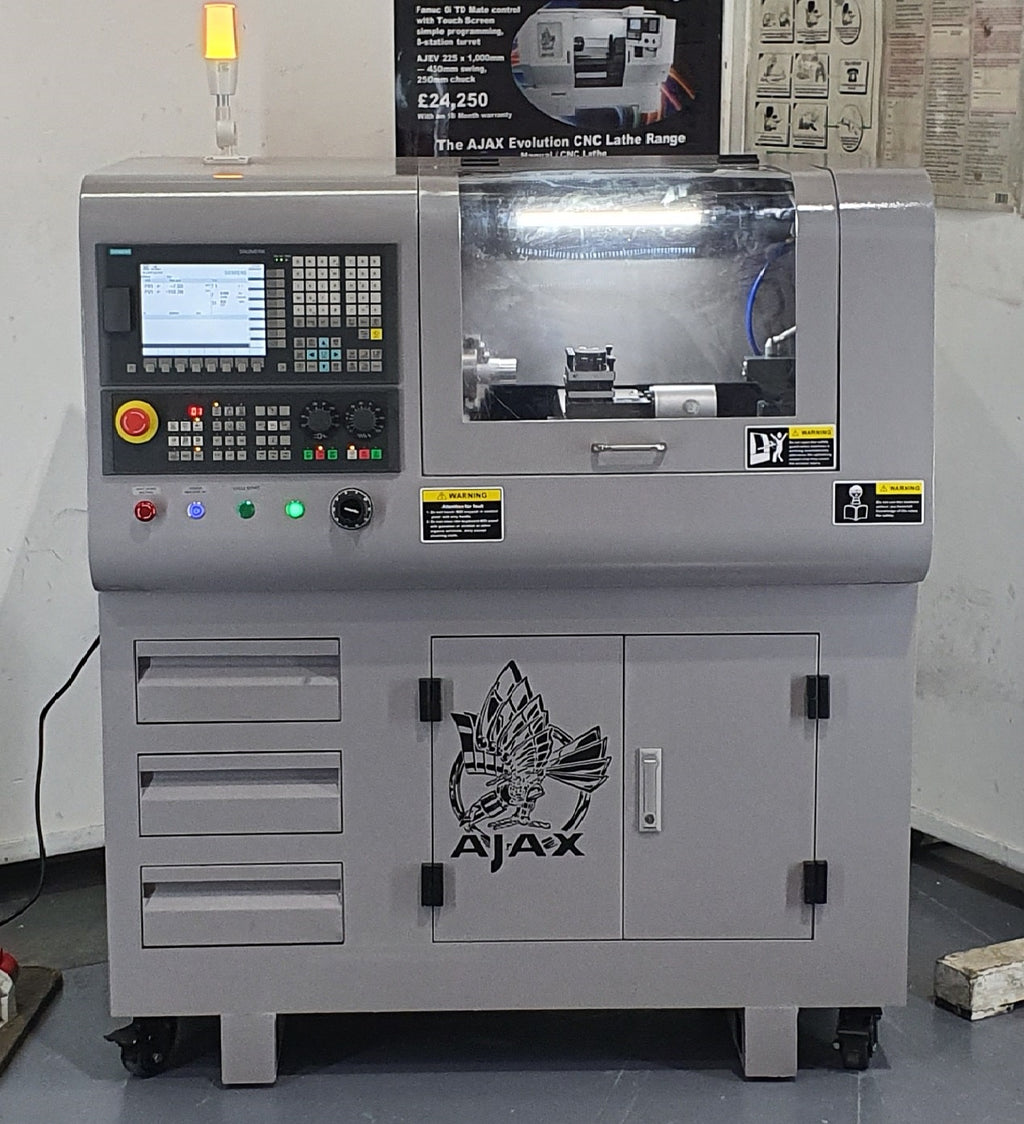

AJAX ATOM MINI CNC LATHE

The New Ajax AJAT210 CNC ATOM lathe is designed to solve a problem by fitting through a
standard door and plugging into a standard 240v 13 Amp plug found in classrooms. It has an
industry standard Siemens 808D control to give the trainee the real experience. It has braked
wheels so it can be moved around to save space when not being used, then feet can be screwed
down to fix the machine. It will fit through a classroom door to make it easy to install and easy
to move around. It has drawers to store equipment associated with the lathe. It has a good
ergonomic design.
The Siemens 808D has free downloadable PC based system for training and offline
programming.
BED
Centre Height 105 mm
Distance between Centres 400 mm
Swing Over Bed 210 mm
Swing Over Cross Slide 100 mmHEADSTOCK
Main Spindle Bore 26 mm
Main Spindle Nose Flat Nose
Main Spindle Taper No.4 Morse Taper
Variable speed 100 – 3,000 RPM
Chuck 100mm
CARRIAGE
X axis stroke 105 mm
Z axis stroke 300 mm
Working Feeds 0 – 3,000 mm/min
X Rapid Feed 5 m/min
Z Rapid Feed 5 m/min
TAILSTOCK
Barrel Diameter 22 mm
Barrel Travel 50 mm
Tailstock Taper No.2 Morse
TOOLPOSTS
Automatic Tool post Standard
Number of stations 4
Tooling size 12 x 12mm
MOTORS
Main Spindle 1.2 Kw
Coolant 0.4 Kw
MACHINE PERFORMANCE
Positioning Accuracy +/- 0,010 mm
Repeatability +/- 0,007 mm
System resolution +/- 0,001 mm
SIZES
Net weight 350 Kgs
Overall size 1,240 x 800 x 1,760 mm
Shipping Specification (Approx)
Dimensions: 1,240 x 800 x 1,760 mm
Weight 350kgs

STANDARD EQUIPMENT:-
Siemens 808D CNC Control with graphic conversational input.
Features.
1. Profiling, roughing, screw cutting & screw cutting relief cycles.
2. Profile editor for drawing more complicated shapes.
3. Tool geometry compensation
4. ISO G code programming
5. Constant surface speed.
6. Inch or metric display.
7. Multi- language support.
100mm Self Centring 3 jaw chuck
Variable Spindle speed with CSS
4 way automatic toolpost.
Automatic Lubrication of Slideways
Electronic Handwheel for the X & Z Axes
Coolant Pump and fittings
Low Volt Lighting
Instruction Manuals
Full Ajax training videos on USB so no need
