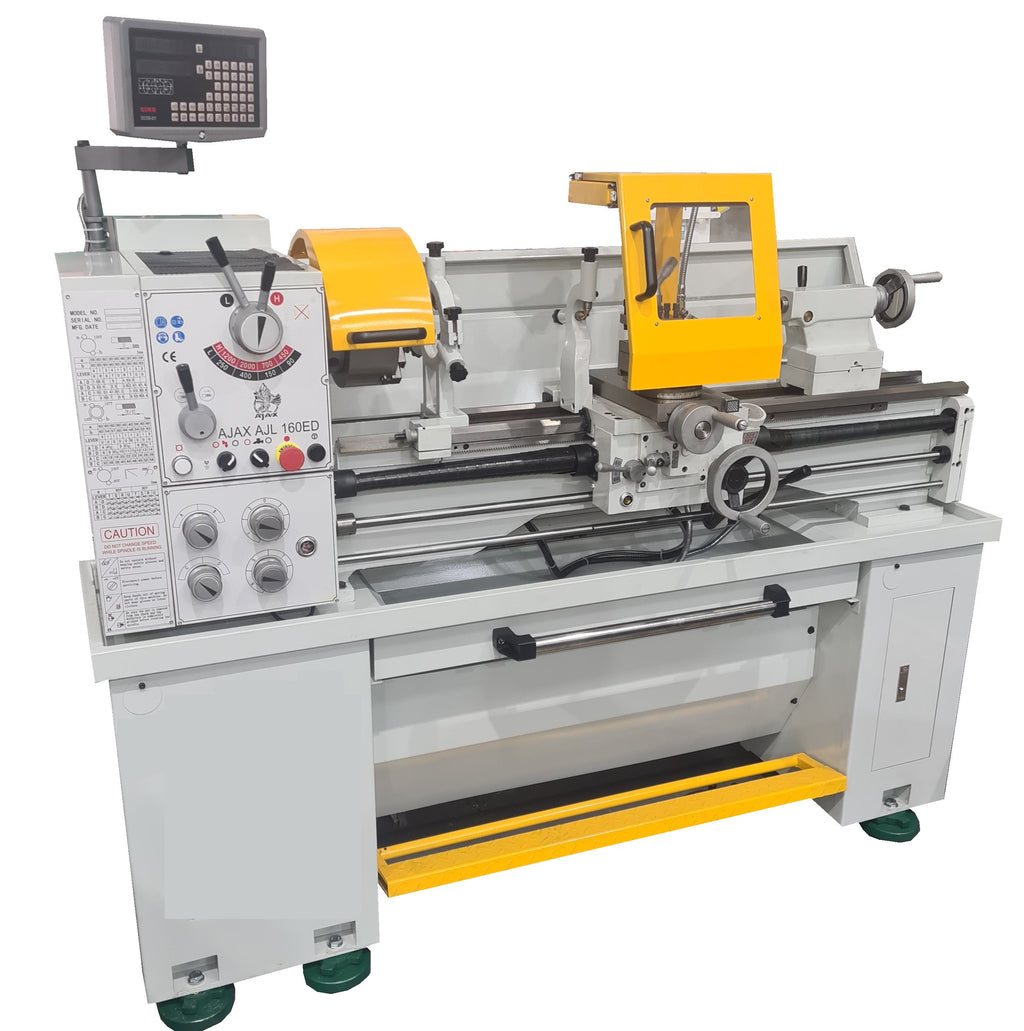

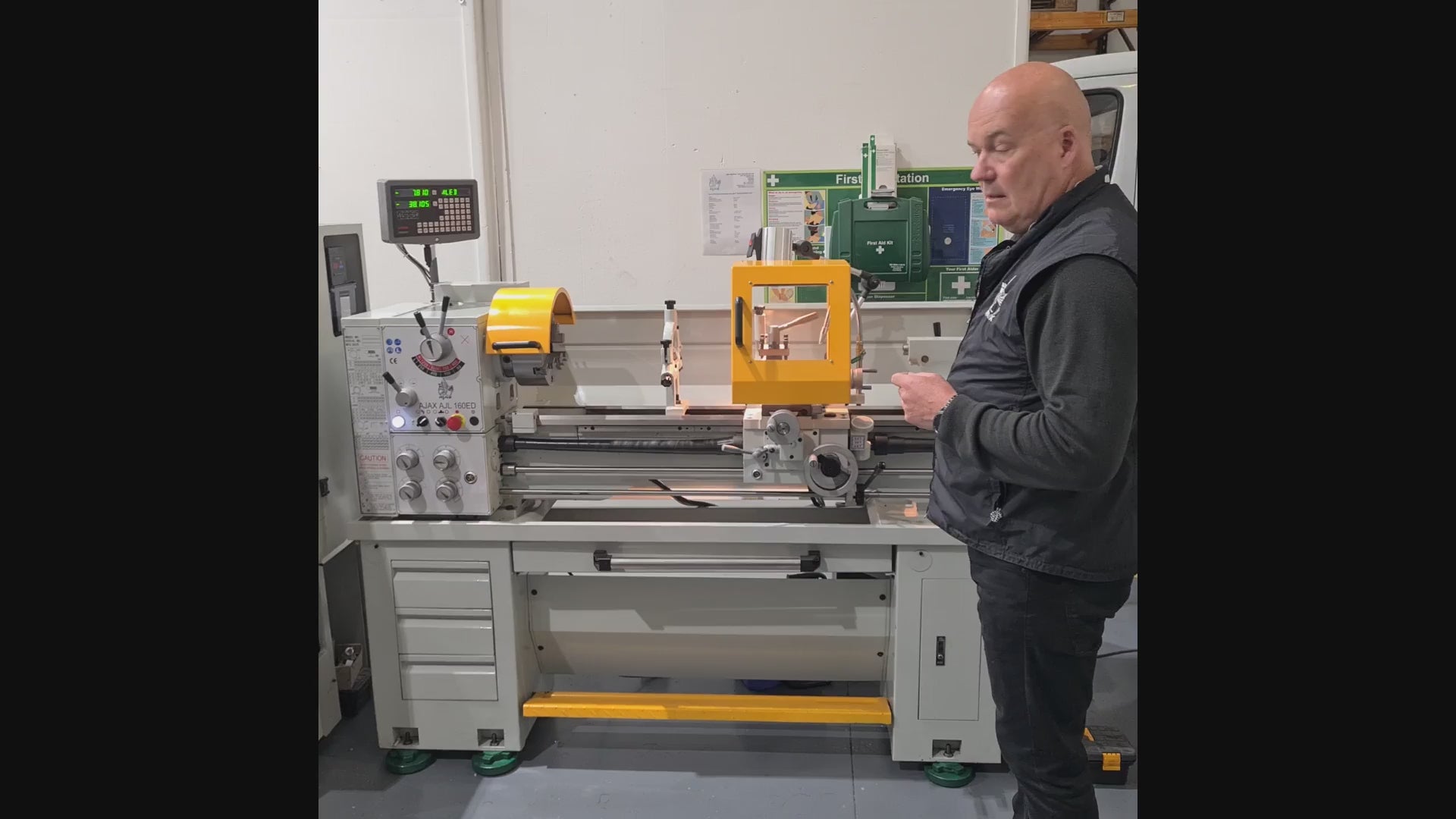

Ajax Centre Lathe AJL160ED

The next generation of Student lathes from Ajax now include inverter driven spindle control to give
better & more speed control, better safety with quicker stopping times and better long-term reliability.
The bed casting is manufactured from high quality cast iron, induction hardened and precision ground.
The headstock comprises of a hardened and ground steel main spindle, mounted on precision taper
roller bearings, lubricated by an automatic system. The gearbox is a universal type, giving a wide range
of metric and imperial threads. The saddle designed to give maximum rigidity, all gears and shafts in the
apron are hardened and ground and lubricated from a central oil bath. The electrical system is fully
compliant with current E.C regulations. CE Marking
SPECIFICATION
Centre Height 180 mm
Swing over bed 360 mm
Swing over cross slide 220 mm
Distance between centres 1000 mm
Width of bed 187 mm
Maximum swing in gap 491 mm
Length of Gap 200mm
HEADSTOCK
No: of spindle speeds Variable with 2 ranges
Spindle speed range 90 – 2,000 RPM
Spindle nose D1-5 Camlock
Spindle bore 52mm
Spindle taper No.5 MT
FEEDS AND THREADS
No. of feeds 32
Range of longitudinal feeds 32 off 0.052 - 1.392 mm/rev
Range of cross feeds 32 off 0.009 - 0.253 mm/rev
Range of metric threads 26 off 0.4 - 7 mmSADDLE
Cross slide width 130 mm
Cross slide travel 118 mm
Compound slide travel 90 mm
Tooling size 16 x 16mm
TAILSTOCK
Quill diameter 32 mm
Quill morse taper No.4
Quill travel 100 mm
MOTORS
Main motor 1.5kw 2 HP
Coolant pump motor 40 W
Standard electrics are 415 volts 3 phase 50 cycles or 240 volts 1 phase
STANDARD EQUIPMENT
Inverter driven spindle motor
2 Axis Sino Digital Readout.
Quick change tool post with 4 holders
200mm 3 Jaw chuck
200mm 4 Jaw chuck
250mm Face plate
2 Point 10 – 60 mm Traveling Steady
3 Point 10 – 115 mm Fixed steady
Foot Operated Brake
Coolant System
Thread Dial Indicator
Low Volt Lighting
Swarf/Coolant Trays
Machine Leveling Bolts
Combined Chuck Guard for 3 and 4 Jaw Chucks
Work Zone guard
Centralised Lubrication
Spindle Bush, 2 Solid Centre’s, 1 x MT.4, 1 x MT.3
Splash Guard
Operating & Spare Parts Manual
