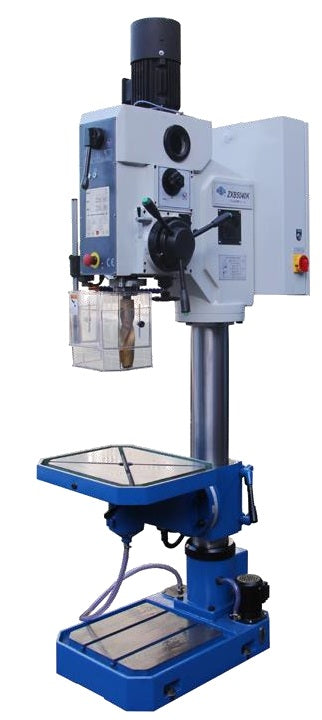

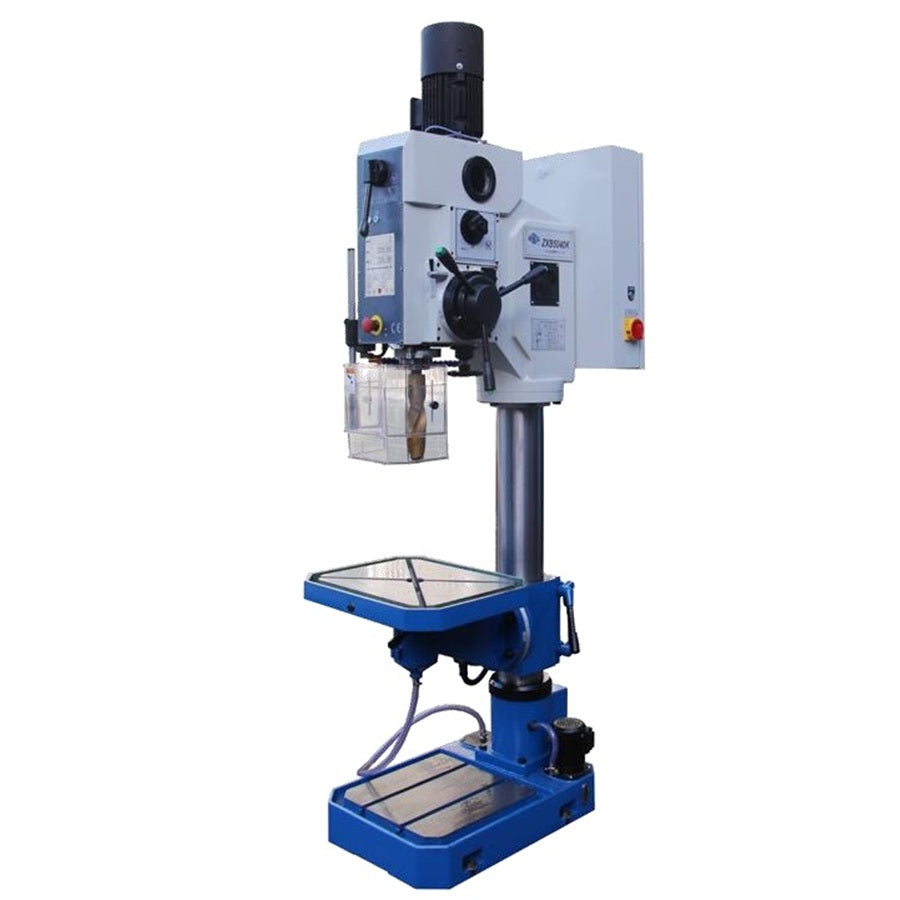

Pedestal Drill PD40

SEMCO Model PD.40 Pedestal Drilling Machine, gear box speed control to give more power with power feed & coolant. This is a heavy duty drilling machine robust in build quality and very rigid construction. Digital depth reader, motor power to rise & fall of the table.
SPECIFICATION
Maximum drilling capacity in mild steel 40 mm
Maximum tapping capacity in mild steel M22
Spindle Taper No.4 Morse
Distance from Spindle to Column 270 mm
Distance from Spindle nose to base 1,195 mm
Distance from Spindle nose to table (max) 610 mm
Table dimensions 540 x 440 mm
Base dimensions 415 x 400 mm
Column diameter 140 mm
Maximum spindle traverse (hand and power) 190 mm
Number of Spindle Speeds 12
Spindle Speed Range (rpm) 75 – 2,020
Feeds per revolution 0.1 / 0.2 / 0.3
Spindle Motor Power 1.5 Kw
Coolant pump motor 0.8 Hp
Coolant flow rate 6 L / min
Height of Machine 2,275 mm

Delivery 3-4 weeks
